Kawasaki Ninja 300 Special Edition Abs

Kawasaki Ninja 300 Special Edition Abs

Kawasaki Ninja 300 SBK Special Edition

Make Model

Kawasaki Ninja 300 SBK Special Edition

Year

2014

Engine

Four stroke . parallel twin, DOHC, 4 valves per cylinder

Capacity

296 cc / 18.0 cu-in
Bore x Stroke 62 x 49 mm
Cooling System Liquid cooled
Compression Ratio 10.6:1
Lubrication Forced lubrication, wet sump

Induction

Fuel injection: �32 mm x 2 (Keihin), with dual throttle valves

Ignition

TCBI with Digital Advance
Starting Electric

Max Power

29.0 kW / 39 hp @ 11000 rpm

Max Torque

27.0 Nm / 2.8 kg-fm @ 10000 rpm
Clutch Wet multi-disc, manual

Transmission

6 Speed
Final Drive Chain
Primary Reduction Ratio 3.087 (71/23)
Gear Ratio 1st 2.714 (38/14)  2nd 1.789 (34/19)  3rd 1.409 (31/22)  4th 1.160 (29/25)  5th 1.000 (27/27)  6th 0.893 (25/28)
Final Reduction Ratio 3.000 (42/14)
Frame Tube diamond, steel

Front Suspension

37 mm Telescopic fork,
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Bottom-Link Uni-Trak with gas-charged shock and 5-way adjustable preload,
Rear Wheel Travel 132 mm / 5.1 in

Front Brakes

Single 290 mm petal disc Single balanced actuation dual-piston

Rear Brakes

Single 220 mm petal disc Caliper: Dual-piston

Front Tyre

110/70-17 M/C 54S

Rear Tyre

140/70-17 M/C 66S
Rake  27�
Trail 93 mm / 3.6 in
Dimensions Length 2015 mm / 79.3 in
Width 715 mm / 29.1 in
Height 1110 mm / 43.7 in
Wheelbase 1405 mm / 55.3 in
Seat Height 785 mm / 30.8 in
Ground Clearance 140 mm / 5.5 in

Wet Weight

172 kg / 379.1 lbs - ABS 174 kg / 383.6 lbs

Fuel Capacity

17 Litres / 3.8 US gal

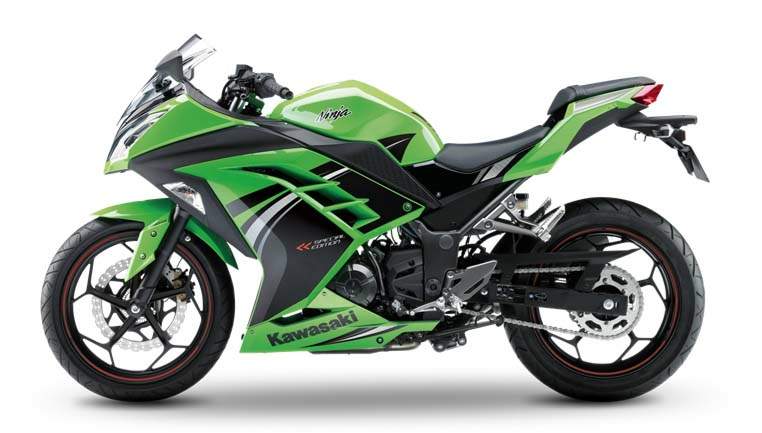

Praised for its big bike looks and strong Ninja family styling approach, the highly popular Ninja 300 is available in a Special Edition specification.

Based on the current twin-cylinder, water-cooled Ninja 300, the Special Edition stands out from other entry-level competitors thanks to a World Superbike inspired bodywork graphic package and colour-coded wheel rim tapes.

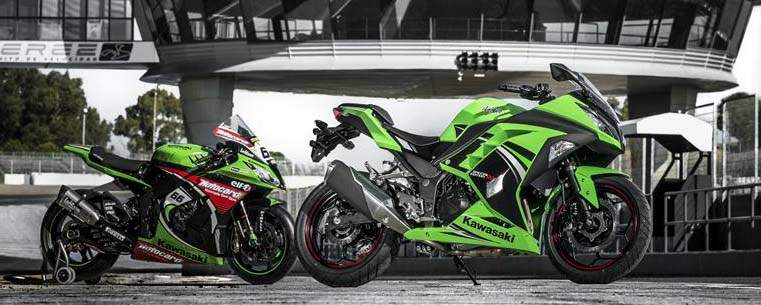

Featuring the by now famous �elliptical� graphic style of the machines ridden by Kawasaki WSBK stars Tom Sykes and Loris Baz, the Ninja 300 Special Edition will be available in standard and ABS equipped versions from Kawasaki dealers across Europe in late 2013.

Commenting, Mr Yasushi Kawakami, Managing Director of Kawasaki Motors Europe, highlighted the need to cater for the type of customer typically attracted to the smallest capacity machine in the formidable Ninja range.

�For many riders � either new to two wheels or returning after some time away � the Ninja 300 has become a popular motorcycle of choice. We are sure that the chance to ride a machine which has a visual appearance inspired by our race-winning Ninja ZX-10R World Superbike will prove a very attractive prospect.�

The two models are identical form a technical point of view, as they share the same frame and 296cc parallel twin injected engine, the same wheels and braking system, and the same bodywork. Revving up to the 11,000 rpm mark yields a 39 hp peak power while the maximum torque of 29Nm (21.4 lb-ft) is reached 1,000 revs lower. The Kawasaki Ninja 300 Special Edition uses the same 6-speed manual transmission and assist/ slipper clutch.

Fuel injection has a dual throttle valve system which allows a smoother, more manageable power and torque delivery when twisting the throttle hard, while the anti-hopping clutch makes strong downshifting safer and easier to deal with, and pulling the clutch feel much lighter.

The 37mm fork is complemented by a bottom link Uni-Trak gas-charged rear damper with 5-way adjustability, and braking power comes from two petal rotors, a 220mm rear and a 290mm front one, both with dual-piston calipers. Both bikes share the same curb mass of 172 kg (379.7 lb), with a small extra bulk in case of an ABS-equipped model.

Kawasaki Ninja 300 Special Edition Abs
